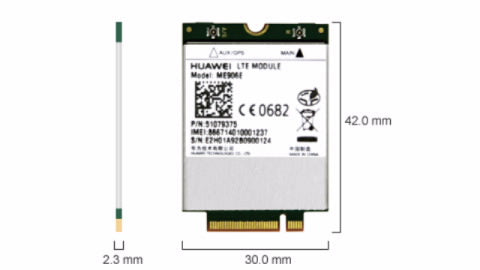

Size Height 42mm Width 30mm Depth 2.3mm Weight <6g Form Factor M.2 Bands LTE (FDD) B1/B2/B3/B5/B7/B8/B20 Quad-band DC-HSPA+/HSPA+/HSPA/UMTS B1/B2/B5/B8 Quad-band EDGE/ GPRS/GSM 1900/1800/900/850 MHz Data Transfer Rate GPRS/EDGE: Multi-slot Class 12 WCDMA PS: UL (384 kbps)/ DL (384 kbps) DC-HSPA+ :UL (5.76 Mbps)/DL (42 Mbps) LTE FDD: UL (50 Mbps)/ DL (100 Mbps) @Bandwidth 20M (CAT3) Interface l Antenna interfaces x 2 l M.2 Socket 2 USB 2.0 interface high speed Power supply UICC interface Power Supply Supply voltage range:3.135V~4.4V (3.3 V recommended) Temp Range Normal operation: -10°C to +55°C Extended operation: -20°C to +70°C Storage: -40°C to +85°C GPS/Glonass GNSS: GPS Standalone, A-GPS, GPS XTRA, Glonass Special Features SIM Hotswap IPV6 BodySAR Ultrabook feature support(ACT, WiFi Offload , DPTF) Tunable Antenna Supporting MO and MT Supporting formats of PDU Point-to-point and cell broadcast Operating System OS: Windows 7/Windows 8/Android 4.0 or above Approvals CE FCC GCF RoHS Compliant/ Halogen free Operator TA: Vodafone, Telefonica, Telstra, TMO
